PROJECT SPECIFICATIONS
| Project Name | ELE Showroom |
| Location | Warren, Michigan |
| Project Type | Office, Showroom |
| Project Status | Under Construction |
| Products | 150 series stick curtain wall system, Steel structure curtain wall Glass partition, Automatic door. |
| Service | Construction drawings, Design proposals ,3D renderings Pre-sales on-site technical solution support, Sample proofing. |
Review
1. The project is located in the Great Lakes area, where the wind speed is high and the temperature in winter is low. It has high requirements for the thermal insulation performance and low temperature resistance of the product, and the project is located next to the highway, so a certain sound insulation effect is required.
2. On theirs website, the sentence that stands out which is“Our main goal is to access the needs of any home through our quality and wide selection of our products!” Just like us at Vinco, we are committed to providing high quality products at reasonable prices to our customers.

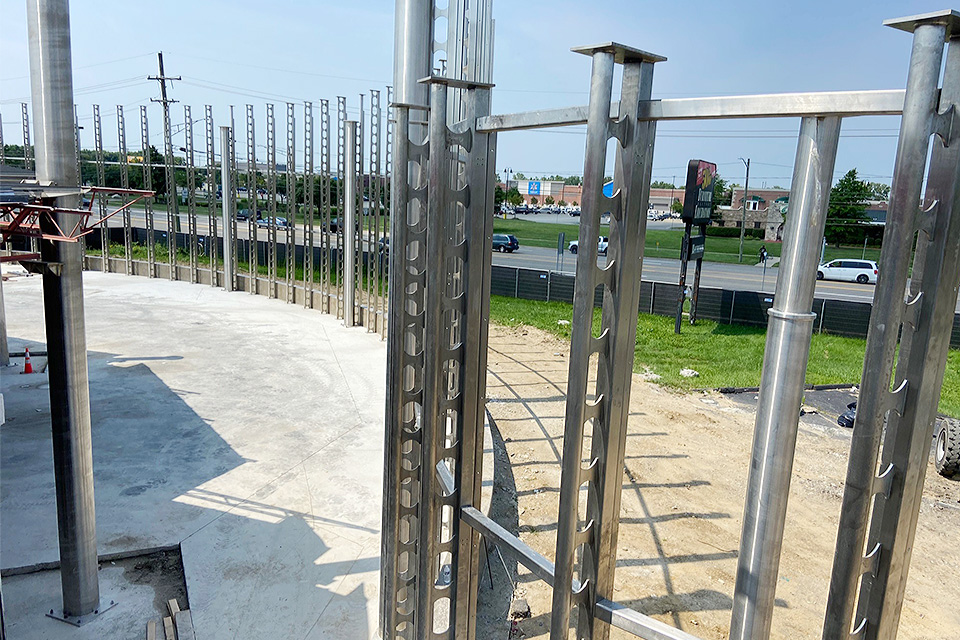

3. The design style of this building is very unique. The stick curtain wall is linked with the stainless steel structure. The hollow stainless steel structure design makes the whole system special. At the same time, because connecting with the curtain wall, it greatly improves the wind resistance of the whole system.
Challenge
1. The curtain wall system is a combination of aluminum profile and stainless steel, designed with an integrated steel structure that bears the overall load. It has a height of 7.5 meters and can withstand wind pressure of up to 1.7 kPa..
2. The project must be cost-effective, with potential cost savings of up to 80% compared to local expenses.
3. The client changed the designer midway through the project.
The Solution

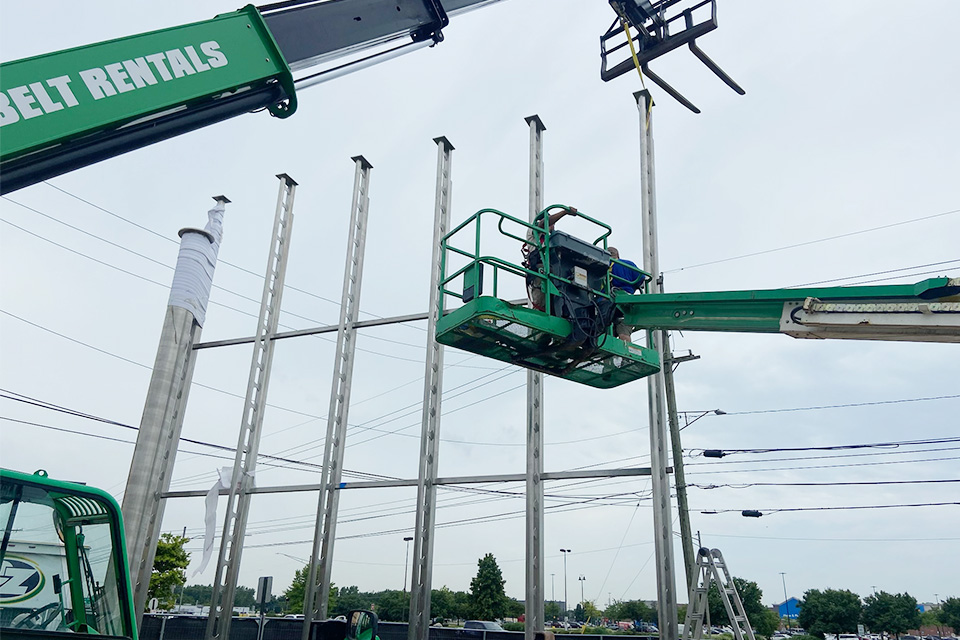

1. Vinco team developed a stainless steel structure system with a width of 550mm, which is combined with the 150 series stick curtain wall to provide sufficient load-bearing capacity for the 7.5-meter high glass curtain wall, meeting wind pressure requirements (1.7Kap) while maintaining an attractive aesthetic.
2. Combine our company's supply chain management system to ensure competitive pricing.
3. Our team in United State visited the client on-site to discuss project requirements, solved the connection issues between the aluminum profiles and steel structure, provided technical support for strengthening the connecting parts.
