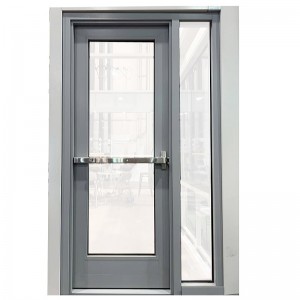

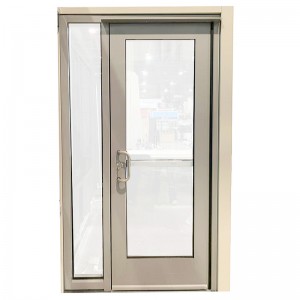

SF115 Commercial Door
SF115 Commercial Door
Its features include:
Overall Thickness
The door features an overall thickness of 2-1/2 inches, providing exceptional durability and insulation. This thickness enhances the door's ability to withstand various environmental conditions while maintaining energy efficiency.
Frame Design
The door is designed with a 5-inch wide stile, 10-inch bottom rail, and 5-inch top rail. This robust frame structure not only offers stability and strength but also contributes to an aesthetically pleasing appearance, ensuring the door complements a variety of architectural styles.
High-Performance Glass
It incorporates 1-inch insulated glass that consists of 6mm low E glass, a 12A spacer, and 6mm clear tempered glass. This configuration enhances energy efficiency by reducing heat transfer, while the tempered glass provides added safety and durability, making it ideal for both residential and commercial applications.

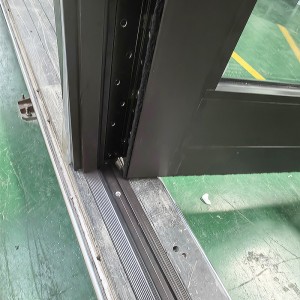

ADA Compliant Threshold
The door is equipped with an ADA-compliant threshold that has no exposed screws. This design not only enhances the aesthetic appeal but also ensures a smooth transition for individuals with mobility challenges, promoting accessibility and safety.
Glazing Installation
The door features square, snap-on, extruded aluminum stops and preformed gaskets for glazing installation. This ensures a secure seal, preventing air and water infiltration while allowing for easy installation and maintenance. The snap-on design simplifies the assembly process.
Continuous hinges
Continuous hinges for commercial doors are made from a single metal piece, providing even weight distribution and enhanced durability. Ideal for high-traffic areas, they ensure smooth operation, reduce maintenance, and improve security, making them a great choice for commercial applications.
Application
Commercial Spaces
The system's sleek, sophisticated aesthetic makes it well-suited for retail stores and office buildings, creating bright, welcoming commercial environments. Its exceptional thermal performance also meets the high energy efficiency requirements of many projects.
Institutional Facilities
In the public sector, the Storefront system is renowned for its impressive durability and safety features, making it a popular choice for schools, healthcare facilities, and government buildings. Its customizable appearance also allows it to cater to the unique aesthetic and security needs of different institutions.
Hospitality and Entertainment
For hotel and resort developments, as well as restaurants and cafes, the Storefront system's expansive glazing design helps to cultivate a warm, inviting atmosphere that seamlessly integrates with these open, welcoming spaces. Its excellent acoustic and thermal insulation also ensures a comfortable experience for occupants.
Model Overview
|
Project Type |
Maintenance Level |
Warranty |
|
New construction and replacement |
Moderate |
15 Year Warranty |
|
Colors& Finishes |
Screen & Trim |
Frame Options |
|
12 Exterior Colors |
OPTIONS/2 Insect Screens |
Block Frame/Replacement |
|
Glass |
Hardware |
Materials |
|
Energy efficient, tinted, textured |
2 Handle Options in 10 finishes |
Aluminum, Glass |
To get an estimate
Many options will influence the price of your window and door , so contact us for more details.
|
U-Factor |
Base on the Shop drawing |
SHGC |
Base on the Shop drawing |
|
VT |
Base on the Shop drawing |
CR |
Base on the Shop drawing |
|
Uniform Load
|
Base on the Shop drawing |
Water Drainage Pressure |
Base on the Shop drawing |
|
Air Leakage Rate |
Base on the Shop drawing |
Sound Transmission Class (STC) |
Base on the Shop drawing |
